The New EZ-RJ45® Crimp Tool

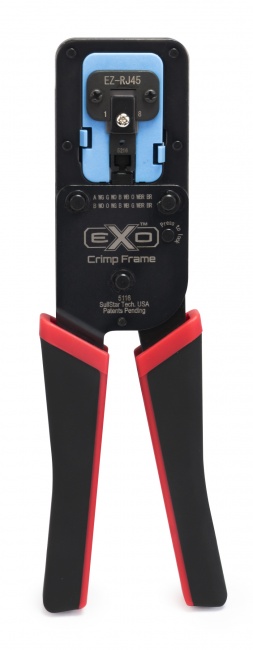

EZ-RJ45 Crimp Tool

Platinum Tools is proud to present the newly patented EXO Crimp Frame® and EZ-RJ45® Die as our new EZ-RJ45 Crimp Tool! Built to terminate the original EZ-RJ45 connectors, which have been a staple in the industry for almost two decades, this crimp tool improves the trim and crimping processes of EZ-RJ45 connectors by using a single cycle crimp and flush trim.

Like the EXO-EX Die, used to terminate ezEX-RJ45 connectors, the EZ-RJ45 Die is designed to lock connectors into place, seating them in the correct position for termination. The die is equipped with a hardened steel blade to trim the conductors flush to the face of the connector during termination. The hardened steel improves the life of the blade, allowing the blade to stay sharper and last longer between blade replacements.

The EXO Crimp Frame itself has ergonomic, comfort grip TPR (thermoplastic rubber) handles and a push button lock, to allow users to compress the handles and stow the tool for easy storage. The push button lock will keep the tool secure and compact in your toolbox, belt pouch, or pocket until the next time you need to use it.

Miswiring a connector costs time and money, so the EXO Crimp Frame has the T568A/B wiring sequence inscribed on the tool just below the die. This lessens the need to replace or rewire incorrectly wired connectors, and makes it easier for any job, large or small, to pass inspection.

Due to its die and tool design, the EXO Crimp Frame with EZ-RJ45 Die can be used right or left-handed, just remove the die and turn it around before re-inserting it back into the tool. The transition is smooth and easy, and it means that no matter what hand you’re used to crimping with, you’ll only ever need one tool to do it.

Sometimes Cat6 and Cat6A cables are too large to fit in standard EZ-RJ45 connectors. With its interchangeable dies, the EXO Crimp Frame with EXO-EX Die (P/N 100061C) will also give users the ability to terminate larger Cat6 and Cat6A cables with ezEX-RJ45 connectors.

Interested? Check out our Where to Buy for the EXO Crimp Frame and EZ-RJ45 Die (P/N 100062C).
