Shielded EZ-RJ45® for CAT5e & CAT6 with Internal Ground

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

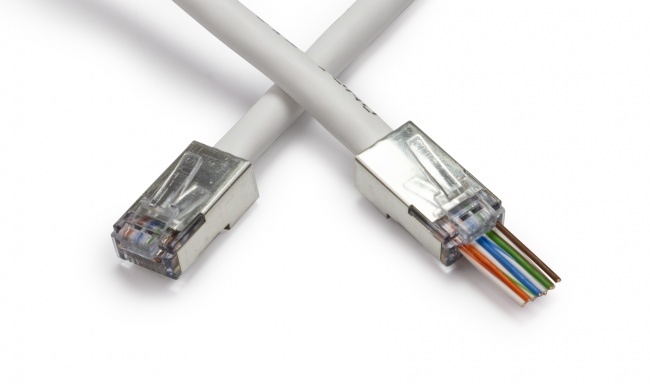

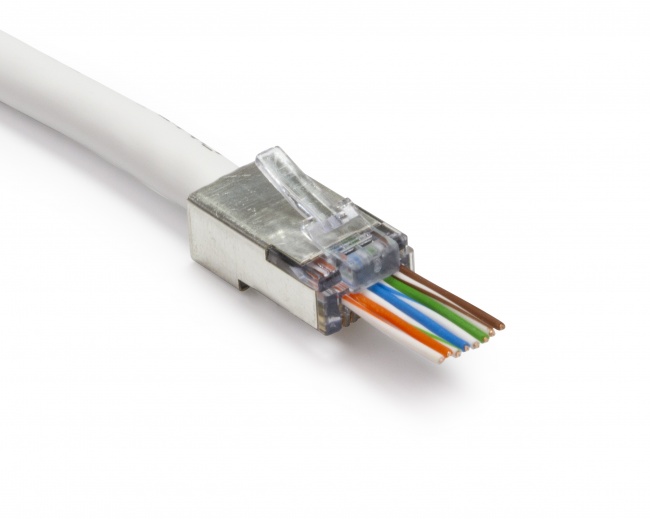

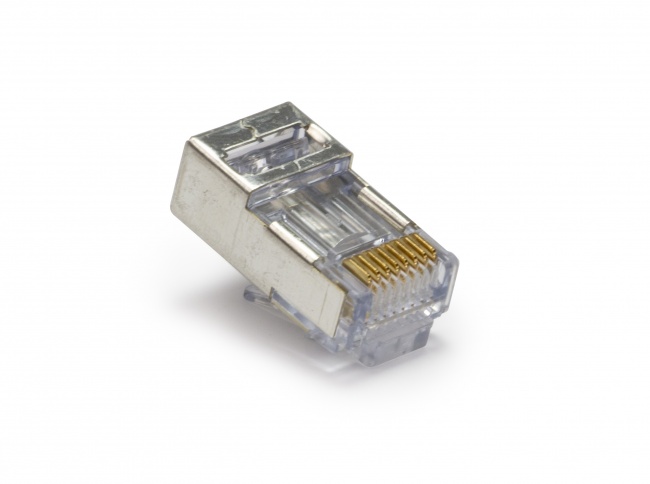

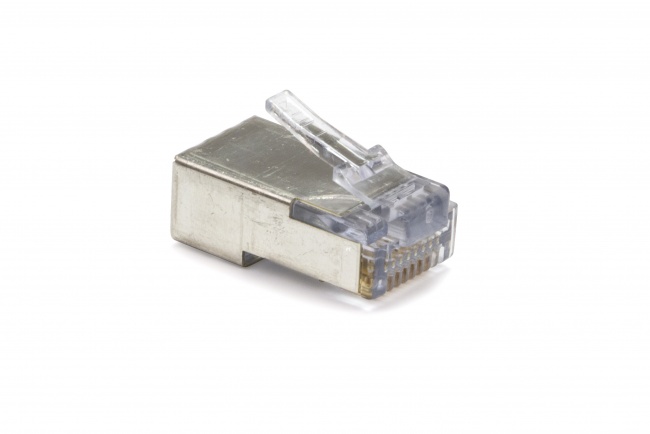

The EZ-RJ45® fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.

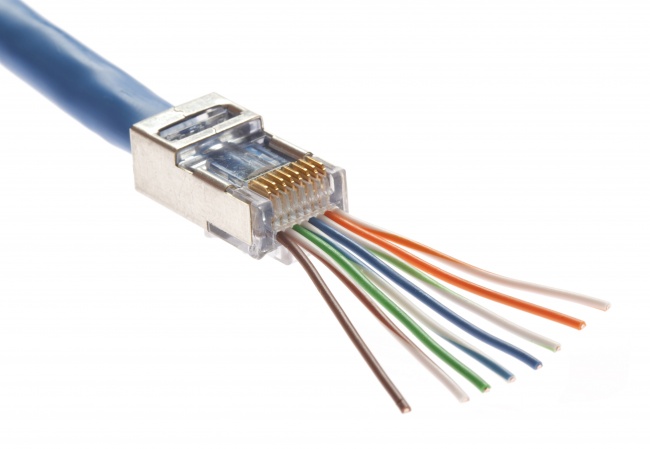

  • EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs.
  • Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance.
  • Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.
  • Significantly improve Shannon capacity.
  • Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade.
  • Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
  • Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.016mm (0.040")
  • For solid round or stranded wire cables.
  • Made in the USA
  • TAA Compliant

Application

Hospitals < EMI / RFI >, Manufacturing plants, Casinos, Broadcast studios, Buildings in proximity to microwave towers, electrical power stations or towers.

  • Can be prepped for use with CAT5e and CAT6+ shielded cable

Part Numbers

100020C
EZ-RJ45 STP Cat5e/6 Connector Int. Ground. 50/Clamshell
202020J
EZ-RJ45 STP Cat5e/6 Connector Int. Ground. 50/Jar
100020
EZ-RJ45 STP Cat5e/6 Connector Int. Ground. 50/Bag
100021C
EZ-RJ45 STP Cat5e/6 Connector Int. Ground. 10/Clamshell
105020
EZ-RJ45 STP Cat5e/6 Connector Int. Ground. 100/Bulk

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.
