EZ-RJ45® CAT5/5e Connectors

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

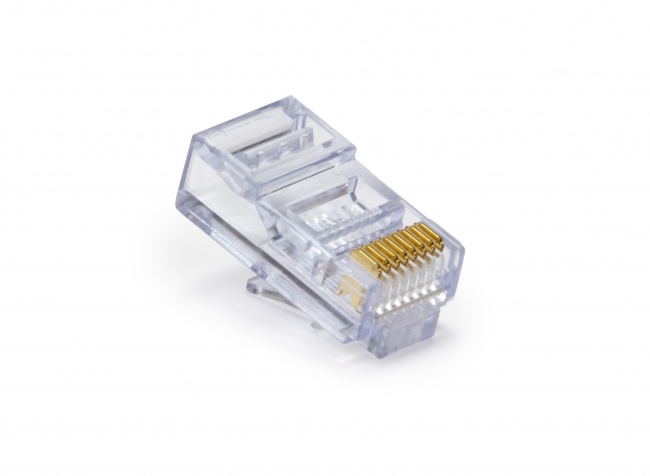

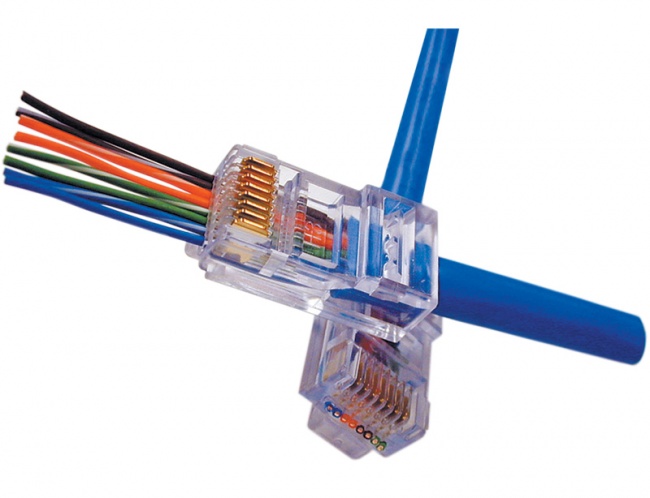

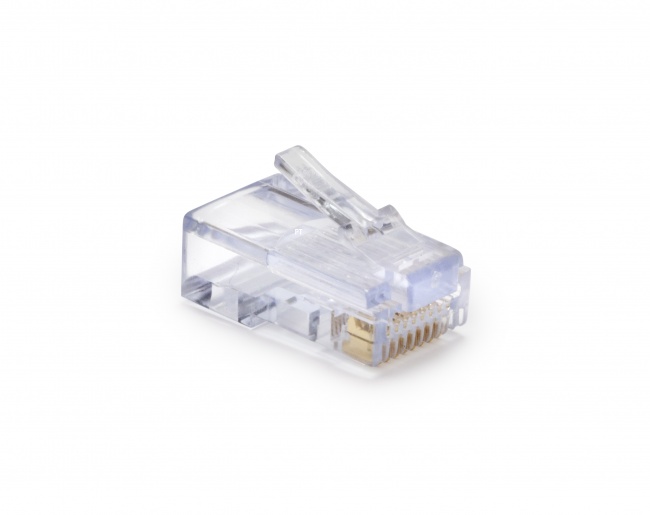

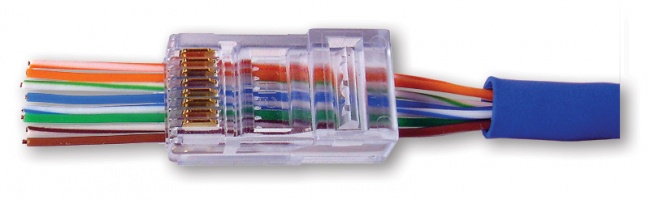

The Original EZ-RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!

WARNING: Platinum’s EZ-RJ45 connectors and crimp tools are designed to work as a system. Platinum Tools’ products are NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Platinum is not responsible for any unintended uses of its products.

Recommended for Data Applications Only
Rated to 1 Gb

Crimp with one of the EZ-RJ45 Crimp Tools.
*Part Numbers 100062, 100054 or 100004

  • Max Cable Outer Diameter: 0.240” (6.09mm)
  • Max Insulation Diameter (Conductors): 0.040” (1.016mm)
  • Meets ANSI/EIA/TIA/TAA specifications
  • UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
  • Solid or Stranded, 24 – 23 AWG
  • 50 micron gold plated contacts
  • Color: Clear/Transparent
  • Made in USA
  • NOT intended to be compatible with other brands >

Part Numbers

100003C
EZ-RJ45® CAT5/5e Connectors, 50 Pc. Clamshell
100003B
EZ-RJ45® CAT5/5e Connectors, 100 Pc. Box
105003
EZ-RJ45® CAT5/5e Connectors, Bulk Package, 500 Pc. Min.
202003J
EZ-RJ45® CAT5/5e Connectors, Jar of 100.
202015J
EZ-RJ45® CAT5/5e Connectors 50/50 Combo, Jar/100.

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.

Cut Strip Terminate Test

Review Your Tool
