EZ-RJ12/11 Connectors

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

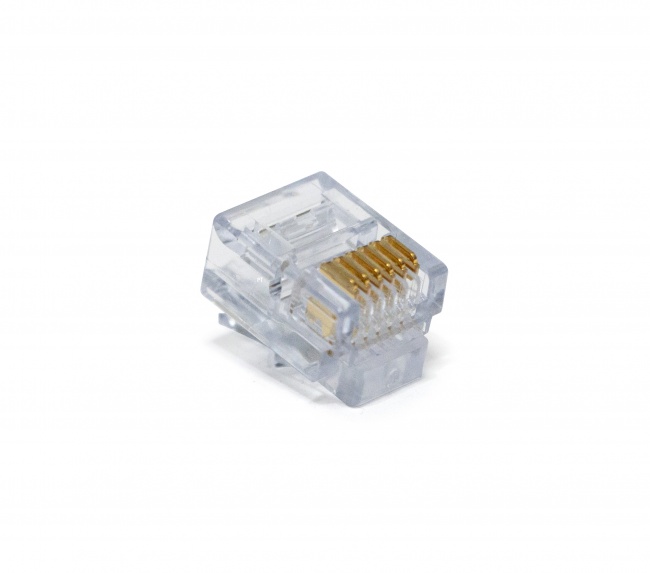

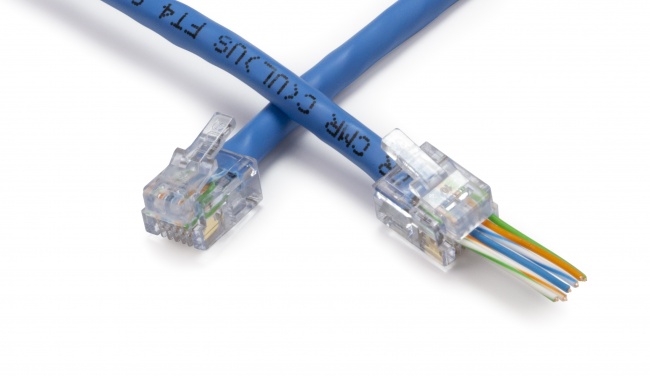

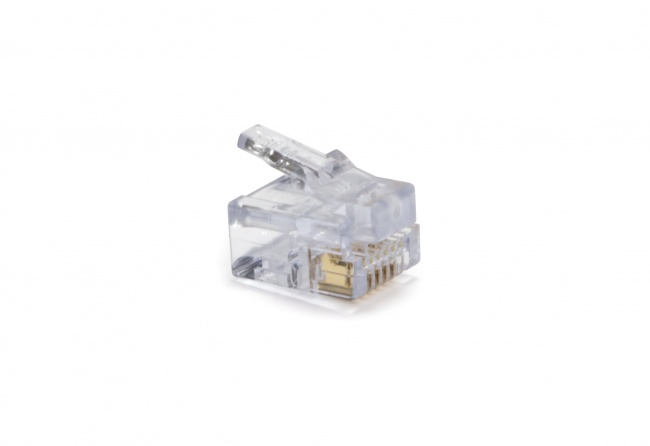

The EZ-RJ12/11 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order prior to termination. Use the EZ-RJPRO HD™ Crimp Tool (P/N 100054) or EXO Crimp Frame® with EZ-12/11 Die (100061 & 100073C) for single cycle crimping and trimming of the excess wire. FCC compliant and UL rated. Made in the USA.

  • For use in telephone & security installations.
  • Faster, easier terminations with reduced scrap.
  • For specialized telephone installations & communications equipment.
  • For applications requiring custom/specific wire configurations.
  • Works on solid or stranded wire.
  • Designed for 6, 4, and 2 conductor applications.

Part Numbers

100026C
EZ-RJ12/11 Connectors, 50 Pc. Clamshell
100026B
EZ-RJ12/11 Connectors, 100 Pc. Box
105005
EZ-RJ12/11 Connectors, Bulk Package, 500 Pc. Min.
100026LTC
EZ-RJ12/11 Long Tab, 50 Pc. Clamshell
100026LTB
EZ-RJ12/11 Long Tab, 100 Pc. Box
105005LT
EZ-RJ12/11 Long Tab, Bulk Package, 500 Pc.

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.

Cut Strip Terminate Test
