Welcome to Platinum Resources

Learn about Platinum Tools products, view online tips, watch instructional videos, and more!

Cat6A 10Gig Connectors

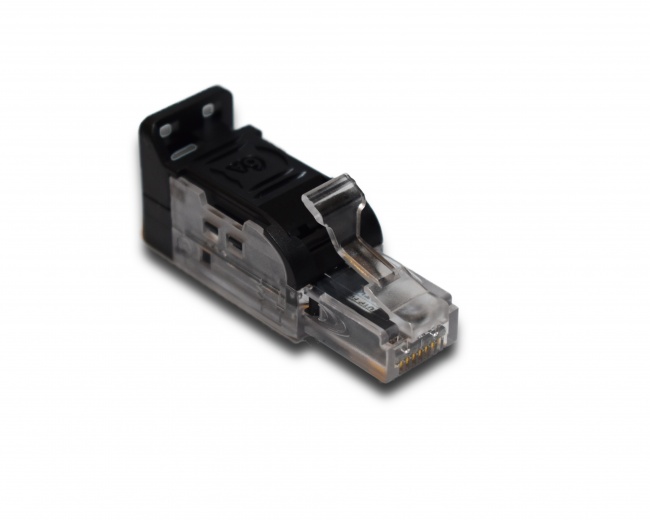

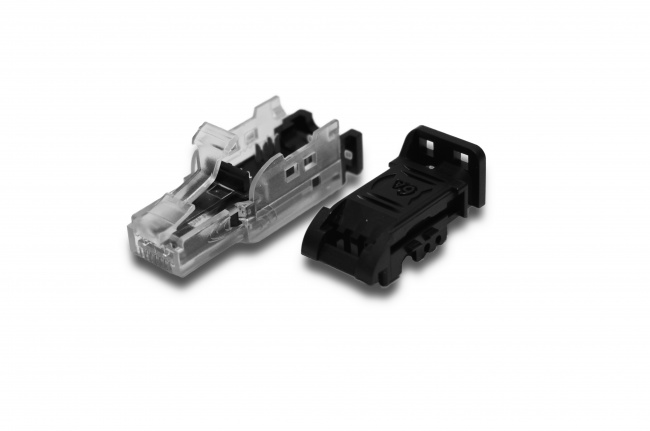

Cat6A PoE Type 4 ConnectorP/N 106260

Downloads

Quick Tips

'POP' Your Cable Jacket, No more knicks.:

When using your Cat5 Cable Jacket Stripper, do not rotate it around & around & around. You want to score the jacket, not cut through it. Then remove the tool, and slightly bend the cable where it is scored and it will 'pop' and separate, viola! This way you will know for sure you have 'no' nicks on the conductors.

FREE TOOL, Twisted Pair Separator, Who says nothing's free?:

What do you do with the small piece of twisted pair cable jacket when you remove it, exposing the 4 pairs to prep for terminating?

Don't throw it away! It's a free tool & handy too. You can use it to separate the individual wire pairs by simply pushing and turning at the same time. Be sure to turn in the opposite direction of the twist and open up each pair end down to the cable jacket. For a professional version of your free tool, separator, take your scissors and cut jacket at an angle!

Wiring Tip, The Color Code is correct!: The color code on the wire guide bar is correct. The physical pairing is different but will pair out logically due to the circuity built into the jack.

Watch video »
