Shielded EZ-RJ45® for CAT5e & CAT6 with External Ground

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

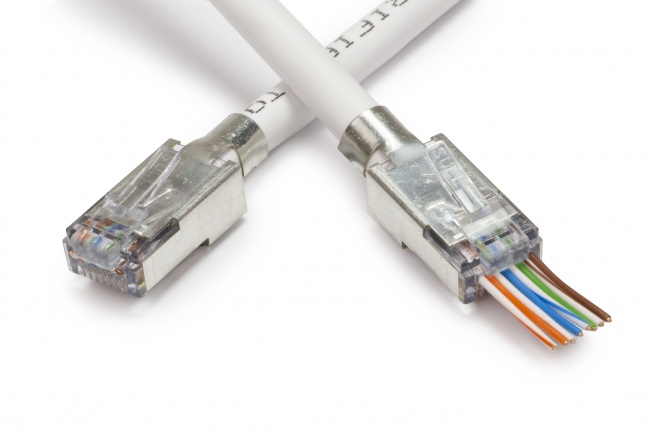

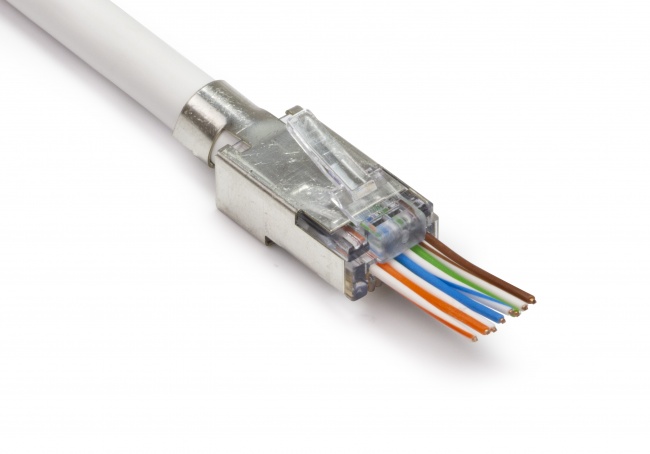

The Original EZ-RJ45® shielded CAT5/6 connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front for EZ verification of wiring sequence. Applications with RF problems or grounding requirements usually specify to use shielded cable & shielded connectors.

  • For use with CAT5e/6+ shielded cable
  • For solid round or stranded wire cables.
  • Max Cable OD: 7.11mm (0.280"),
  • Max Insulated wire OD: 1.016mm (0.040")
  • UL Rated, FCC compliant
  • TAA Compliant

Part Numbers

100022C
EZ-RJ45 STP Cat5e/6 Connector Ext. Ground. 50/Clamshell
202022J
EZ-RJ45 STP Cat5e/6 Connector Ext. Ground. 50/Jar
100022
EZ-RJ45 STP Cat5e/6 Connector Ext. Ground. 50/Bag
100023C
EZ-RJ45 STP Cat5e/6 Connector Ext Ground. 10/Clamshell
105022
EZ-RJ45 STP Cat5e/6 Connector Ext. Ground. 100/Bulk

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
