ezEX-RJ45™ Termination System

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page



The new ezEX-RJ45™ Termination System provides a solution for terminating larger diameter twisted-pair cables, with conductor sizes up to .048”. The ezEX-RJ45™ connector has a hi-lo stagger design to increase performance and accommodate larger conductors found in Cat5e, Cat6, and Cat6A cables while maintaining the EZ® pass through design. This allows you to verify the wiring sequence before terminating. The new EXO™ professional crimp tool and EXO-EX die set pair with the ezEX-RJ45™; connectors to ensure a flush cut and reliable termination every time. Saving time and money without sacrificing performance on high end jobs.

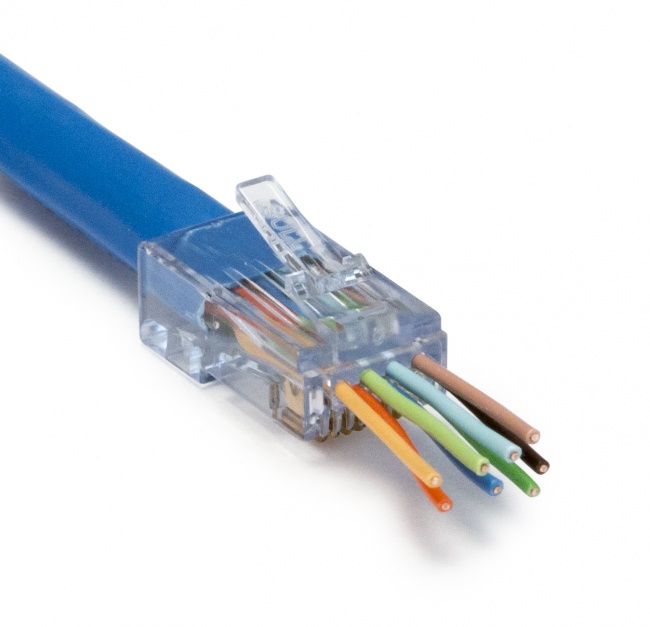

ezEX-RJ45™ Connectors:
  • 2 connectors for conductors ranging .039" – .048"

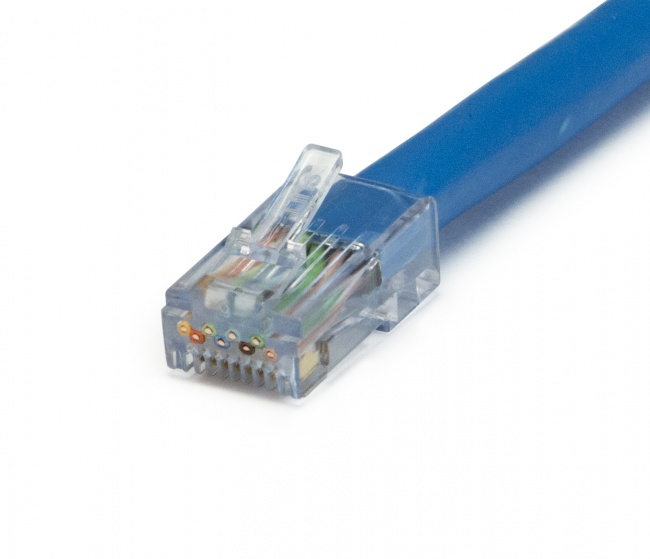

  • Pass through design allows for easy verification of wiring sequence

  • One-piece design — bars or liners are not required

  • Rated up to 10 Gigabit for superior performance

  • Works with solid or stranded conductors

  • FCC, RoHS 2 & UL compliant

  • Made in USA

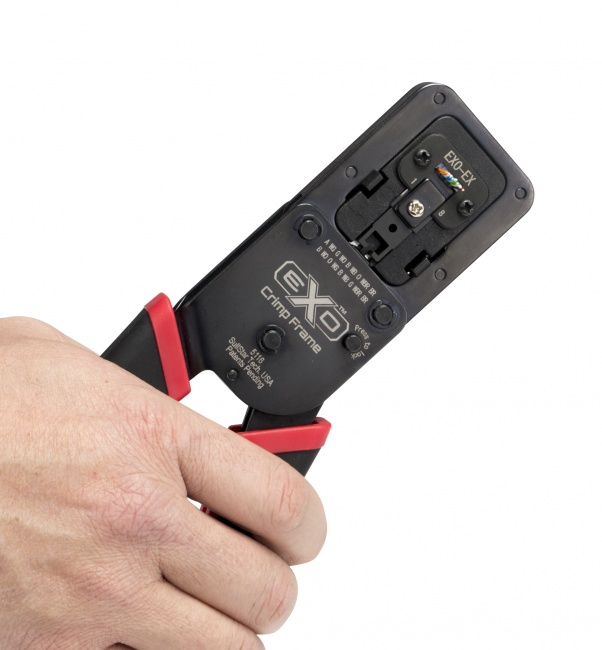

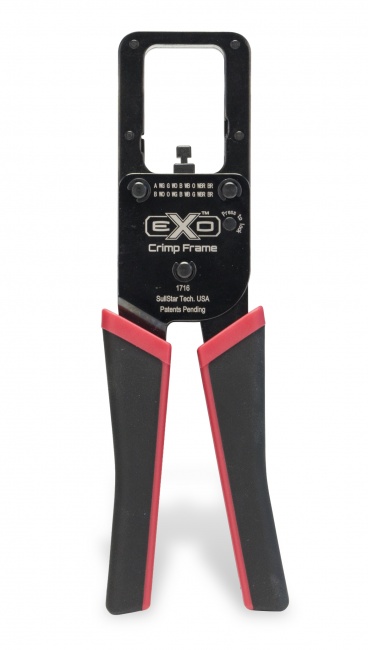

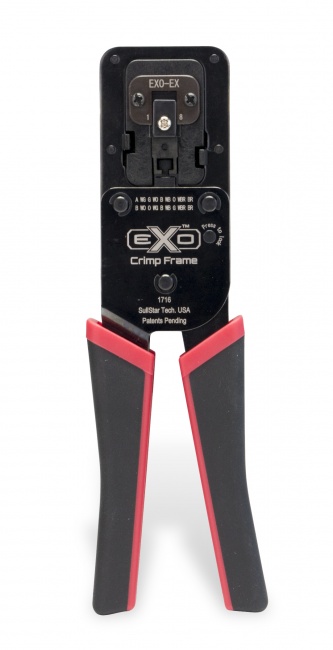

  • EXO-EX Crimp Tool Frame and Dies:

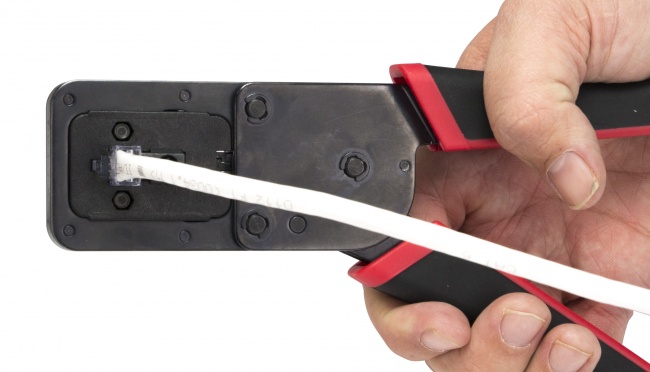

  • One-step to crimp and flush cut/trim ezEX-RJ45™ conductors

  • Die sets are easily interchangeable

  • Reversible die sets for ambidextrous operation

  • Connectors lock into die set port for easier crimping

  • Push button lock for easy storage

  • Ergonomic Comfort Grip TPR Handles

  • Part Numbers

    100061C
    EXO Crimp Frame + EXO-EX Die set for ezEX-RJ45™ Connectors
    100062C
    EXO Crimp Frame + EZ-RJ45 Die for EZ-RJ45 Connectors
    202044J
    ezEX-RJ45™ Connectors. 100pc Jar for .039 - .044"
    202048J
    ezEX-RJ45™ Connectors. 100 pc Jar for .043 - .048"

    Downloads

    Tips

    How you use your tools is just as important as what tool you choose for an application.

    T568A/T568B Wiring Chart
    Great cheat sheet.

    T568A/T568B Wiring Chart — Great cheat sheet.

    Wire 1 2 3 4 5 6 7 8
    T568A W/G G W/O BL W/BL O W/BR BR
    T568B W/O O W/G BL W/BL G W/BR BR
    F and RG6 Quad
    No more stab wounds.

    F and RG6 Quad — No more stab wounds.

    Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

    1. Use the EZ-GRIP Puck for holding & gripping the cable.

    2. Thread the connector onto the F Connector Assembly Removal Tool.

    Cut Strip Terminate Test

    Review Your Tool

    Save Review

    Register for Download


    Optional
