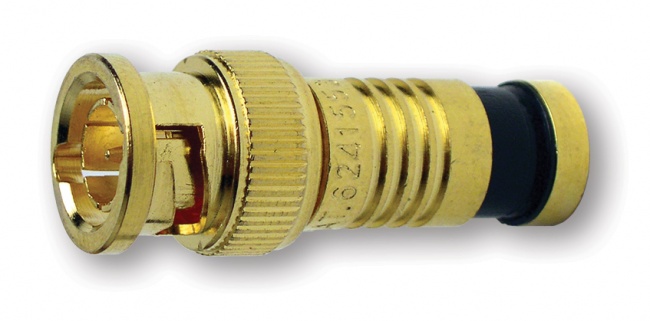

BNC-Type Gold SealSmart Coaxial Compression Connectors

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

Platinum Tools' SealSmart Compression Connectors provide simple, fast and reliable terminations. The perfect solution for CATV, DSS, Security, Home Theater and Residential Structured wiring installations.

  • Molded in gasket provides a weather tight seal at cable entry.
  • Single crimp termination with captive center contact design.
  • Universal crimp tool terminates all three SealSmart Connector designs.

Application

Use on RG59, RG6 and RG6 Quad shield cables. Connectors are color coded for cable type.

Part Numbers

18020
RG 6 Quad - Bulk Package (Blue)
18021
RG 6 Quad - 6 pc. Clamshell (Blue)
18025
RG 6 - Bulk Package (Black)
18026
RG 6 - 6 pc. Clamshell (Black)
18030
RG 59 - Bulk Package (Red)
18031
RG 59 - 6 pc. Clamshell (Red)

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.
