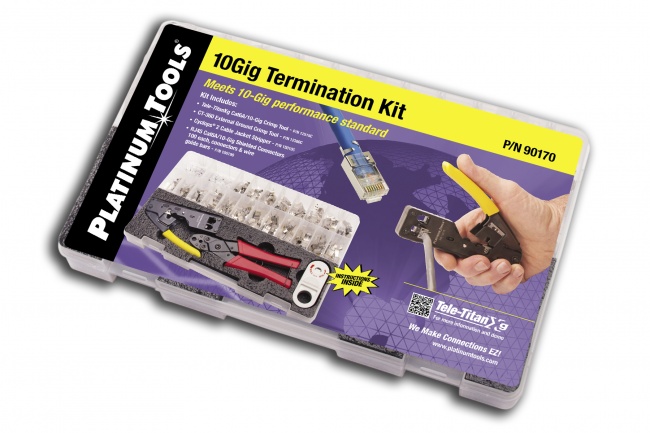

10Gig Termination Kit

P/N 90170

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

This system is the right solution for terminating larger cables like Cat6E, Cat6A, Cat7 and over-sized Cat5e/6 industrial Ethernet cables for data, audio and video applications. p/n 90170

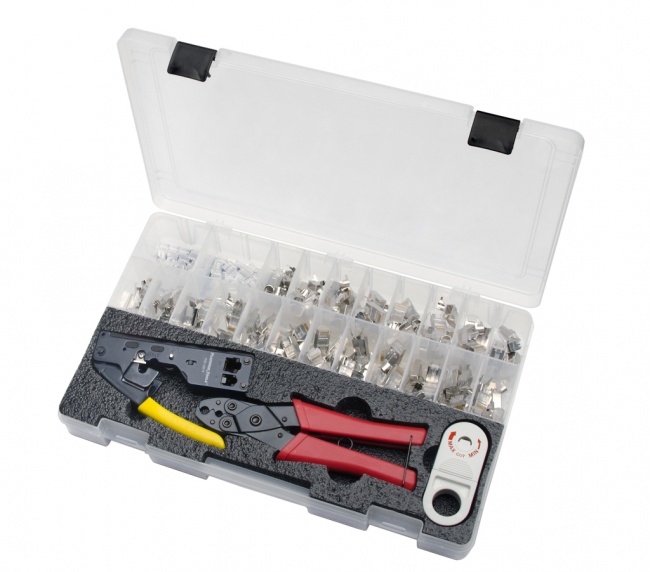

What you get:

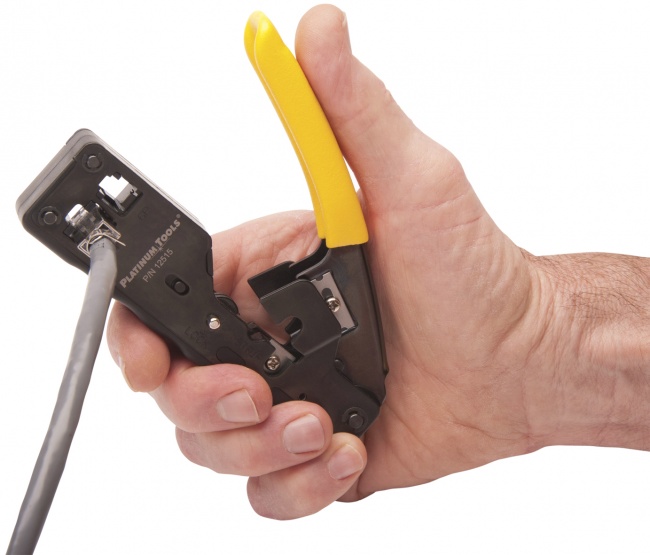

Tele-TitanXg® Cat6A/10Gig Crimp Tool, P/N 12515
- Specifically made for terminating, P/N 106190 Cat6A/10Gig connectors
- Straight action vertical crimp force
- Minimal hand force for a perfect crimp

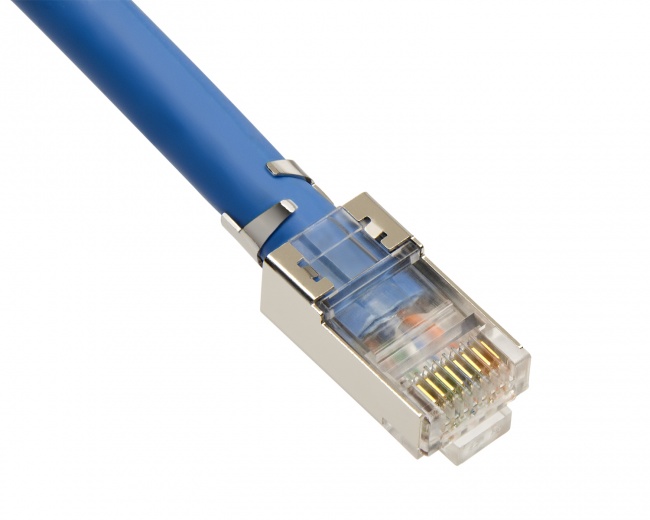

RJ45 Cat6A/10Gig Shielded Connectors 100pcs, P/N 106190
- Max cable OD: 8.5mm/0.335
- Max conductor OD: 1.35mm/0.053
- UL and RoHS compliant

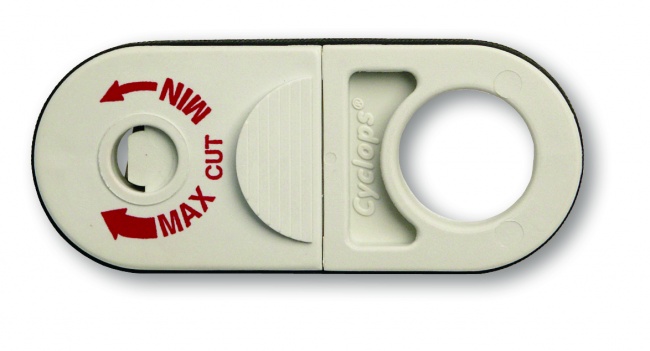

Cyclops®2 Cable Jacket Stripper
- Self-adjusts to automatically score PVC, Plenum and others without damaging braids, foil or conductors
- Ready-to-use out of the kit without having to make adjustments
- Works with shielded/unshielded twisted pair single & multi-core and fiber optic cables
- Accepts cable ODs 0.10" to 0.43" (2.5mm - 11mm)

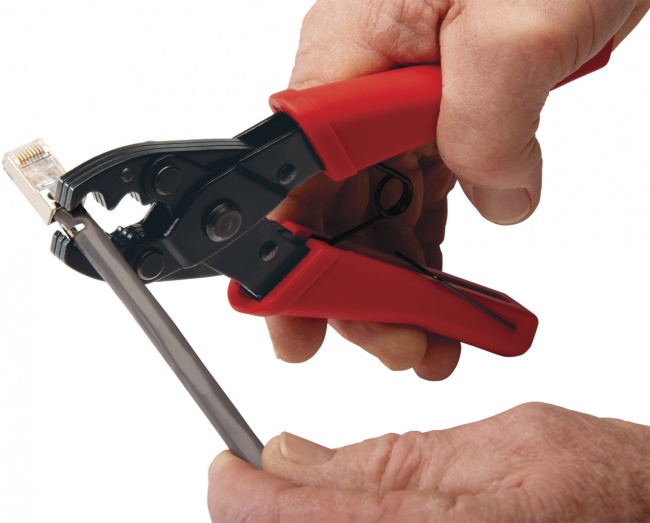

CT-360 External Ground Crimp Tool
- 360° crimp on the external ground tab of shielded RJ45 connectors
- Perform concentric termination with full control to prevent
over or under crimping - Dual cavity covers wide range of cable ODs ranging from 0.245" to 0.335" (6.2mm - 8.5mm)
- Spring-loaded, non-ratcheted design
- All steel frame, rust-resistant black oxide finish, molded plastic handles

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.

Cut Strip Terminate Test
