EZ-RJ45® CAT6 Connectors

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

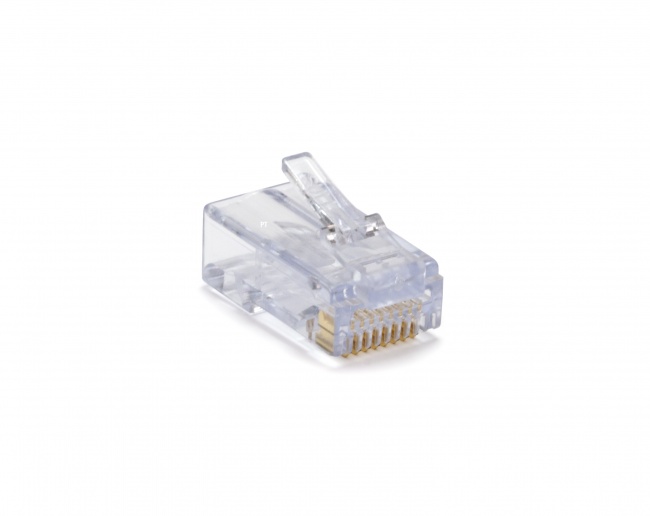

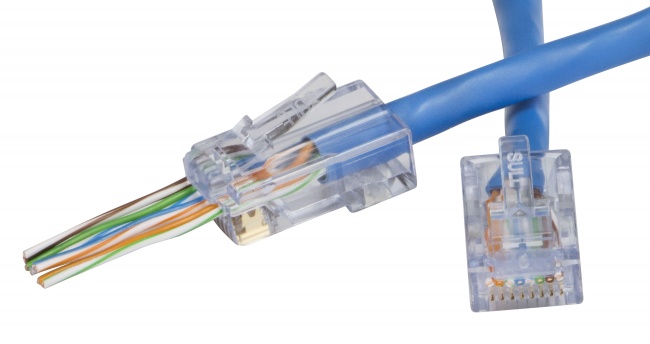

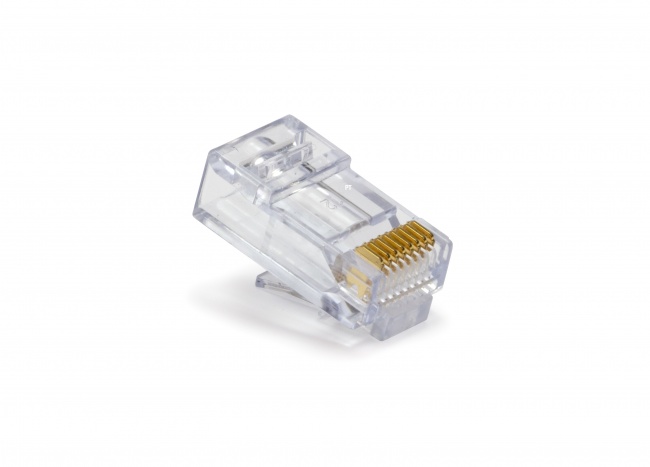

The new patented EZ-RJ45 CAT6 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized! Crimp with the patented EZ-RJ45 Crimp Tool... crimps and trims in one cycle. (See Part Number 100 004 or 100 054 EZ-RJPRO HD). Manufactured in the USA. Patented.

  • For use in CAT6 compliant data networks.
  • Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
  • EZ to verify wire sequence. Simple one piece design...no bars or liners.
  • Works with solid or stranded wire.
  • Faster terminations with reduced scrap.
  • Max Cable OD: 6.60mm (0.260"), Max Insulated wire OD: 1.041mm (0.041")

Part Numbers

100010C
EZ-RJ45® CAT6 Connectors, 50 Pc. Clamshell.
100009C
EZ-RJ45 CAT6 Connector. 10/Clamshell
100010B
EZ-RJ45® CAT6 Conn., 100 Pc. Box.
100011C
EZ-RJ45® CAT6 Combo. Includes 30 Conn. & 30 Strain Reliefs
105004
EZ-RJ45® CAT6 Connectors, Bulk. Min. 500 Pcs.
202010J
EZ-RJ45® CAT6 Connectors, Jar of 100.

Tips

How you use your tools is just as important as what tool you choose for an application.

Pull For Performance
EZ-RJ45 Connector.

Pull For Performance — EZ-RJ45 Connector.

The closer the twists are to your contacts, the better the performance. So don't just push your twists, BUT push & pull. Take advantage of those extended conductors & watch your performance go up!

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.
