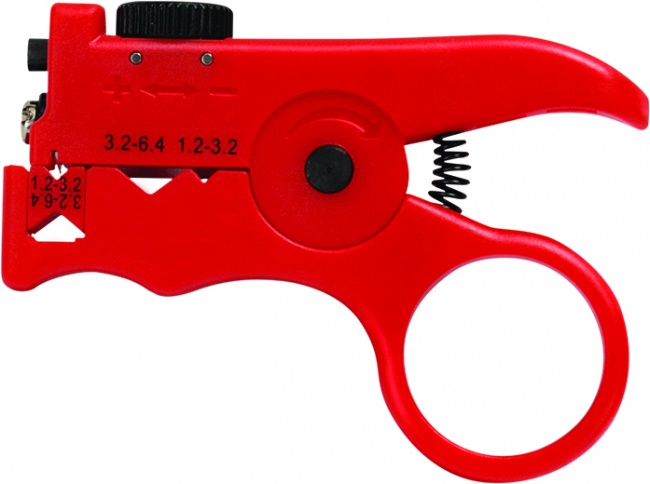

Designed to slit and ring cables, buffer tubes and jackets on fiber optic cables with diameter ranges of 1.2mm to 6.4mm. Intentionally made to be light and small, making it easy to use in confined spaces.
Slitting V-block is removable and reversible to accommodate various diameters
Slit and ring stripping range: 1.2mm – 6.4mm
Adjustable slit blade and ring blade for exact strip cut depth
Tired of pulling the braid back over your coax cable jacket and getting little pieces of braid in your fingers?
Do it the EZ way! Cut a small piece of Velcro, the 'prickly' side, and stick it on the side of your coax stripper. You now have a comb to brush back the braid over the jacket. You will be happy with how nice and even the braid looks and your fingers will be happy too!
When stripping coax, do not turn your tool around as though it were a propeller.
As you rotate your tool, listen to the cutting of the braid and when it stops talking to you, turn another 1/8 to a 1/4 turn, open tool and remove the stripper. When rotating, be sure the hand that is holding the cable is supporting the cable immediately next to the tool. Allow no cable play!
When using your Cat5 Cable Jacket Stripper, do not rotate it around & around & around. You want to score the jacket, not cut through it. Then remove the tool, and slightly bend the cable where it is scored and it will 'pop' and separate, viola! This way you will know for sure you have 'no' nicks on the conductors.
FREE TOOL, Twisted Pair Separator — Who says nothing's free?
What do you do with the small piece of twisted pair cable jacket when you remove it, exposing the 4 pairs to prep for terminating?
Don't throw it away! It's a free tool & handy too. You can use it to separate the individual wire pairs by simply pushing and turning at the same time. Be sure to turn in the opposite direction of the twist and open up each pair end down to the cable jacket. For a professional version of your free tool, separator, take your scissors and cut jacket at an angle!
WARNING: Platinum’s EZ-RJ45 connectors and crimp tools are designed to work as a system. Platinum Tools’ products are NOT intended to be compatible with other brands and such unintended use can result in bad connections, breakage, and human safety hazards, and will also void the warranty. Platinum is not responsible for any unintended uses of its products.
