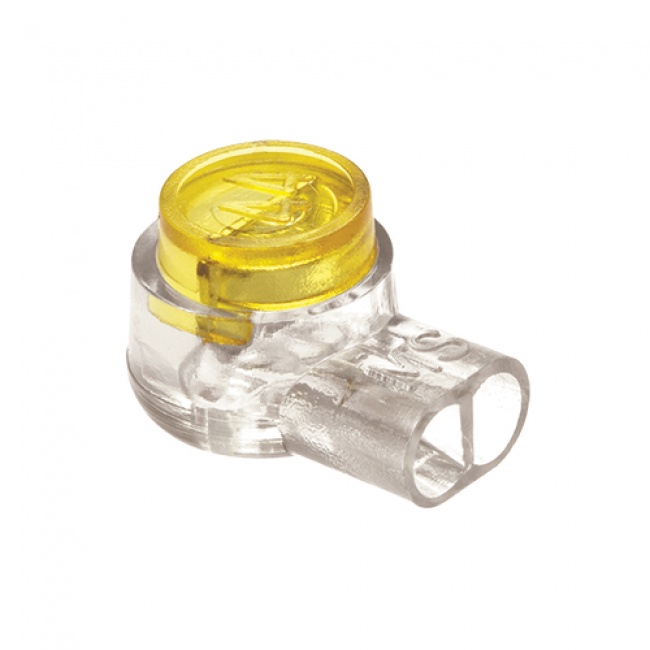

Telcom Splicing Connectors UY-Gel Filled

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

The Telcom Splicing Connectors utilize an insulation displacement contact design for fast, simple, reliable terminations. No wire stripping is required and connectors will accept wire of different gauges. All connectors are Gel filled to provide moisture resistance and inhibit corrosion. For use with solid copper conductors only. Typical uses include Butt Splicing 2 or 3 wires of the same or different gauges. Perfect for pigtail and load coil splice applications. Use the UB connector for tapping onto an existing conductor with no service interruption. This eliminates cutting of cable pairs or opening cable pairs.

  • 22-26 AWG, 2 Wire Splice
  • Wires can be of different wire gauges
  • Max. insulation O.D., .060

Part Numbers

18120
UY-Gel Filled, 22-26 AWG. 100 Piece Box.
18121
UY-Gel Filled, 22-26 AWG. 25 Piece Retail Clamshell.
18122C
UY Gel-Filled Connector, 22-26 AWG. 100/Clamshell.

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.
