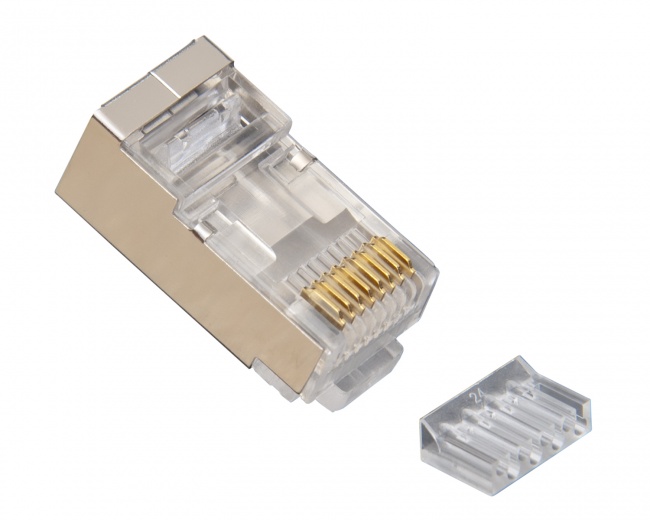

This 2 piece shielded system makes terminating CAT6 quick & easy. The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration. Simply flush cut the conductors and slide assembly into the connector and terminate.
- Eight conductor mod plug with loading bar
- Liner Bar Part No.: 1041
- For conductors with an O.D. Range of .044
- Uses 0.30mm (.012)
- 3 prong contact for solid conductors only
- Max cable jacket O.D., .285
- RoHS & UL Compliant
