Standard CAT5e RJ45 Modular Plugs

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

Traditional style modular plugs for use in terminating cables in both telephone and data applications. Manufactured to comply with FCC 68 guidelines and are UL listed.

  • Multiple position & contact configurationstyles available.
  • Round & flat cable versions.
  • 2 prong stranded conductor contact.
  • 3 prong solid conductor contact.
  • Gold plated contacts provide reliable performance and long life: 50μ & 15μ gold.
  • Complies with FCC 68 guidelines.
  • UL listed.
  • Flammability rating: UL94V-2.
  • Materials: Polycarbonate.
  • Contact material: Phosphor bronze.

Application

  • Telecommunications.
  • Datacommunications.

Part Numbers

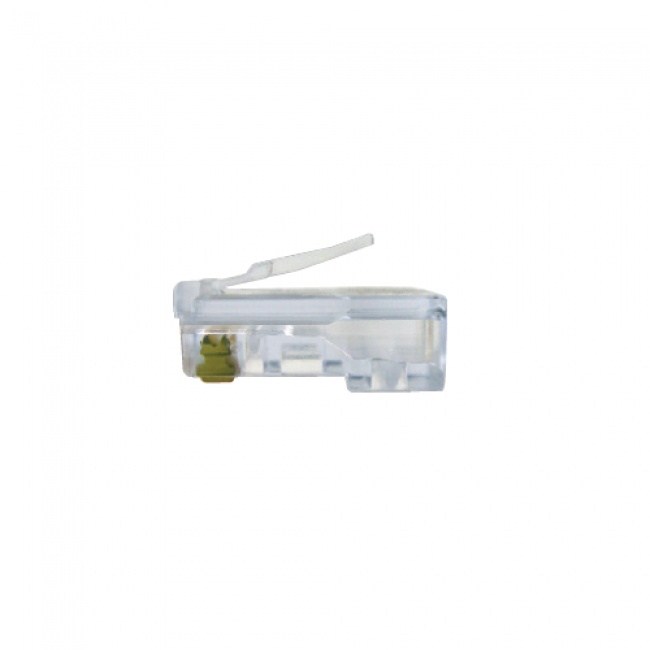

106140
RJ45 CAT5e (8P8C), Flat Cable, Stranded Wire, 500 pc. Bag
106143J
RJ45 CAT5e (8P8C), Flat Cable, Stranded Wire, 100 pc. Jar
106145
RJ45 CAT5e (8P8C), Round Cable, Stranded Wire, 500 pc. Bag
106148J
RJ45 CAT5e (8P8C), Round Cable, Stranded Wire, 100 pc. Jar
106150
RJ45 CAT5e (8P8C), Round Cable, Solid (3 prong) Wire, 500 pc. Bag

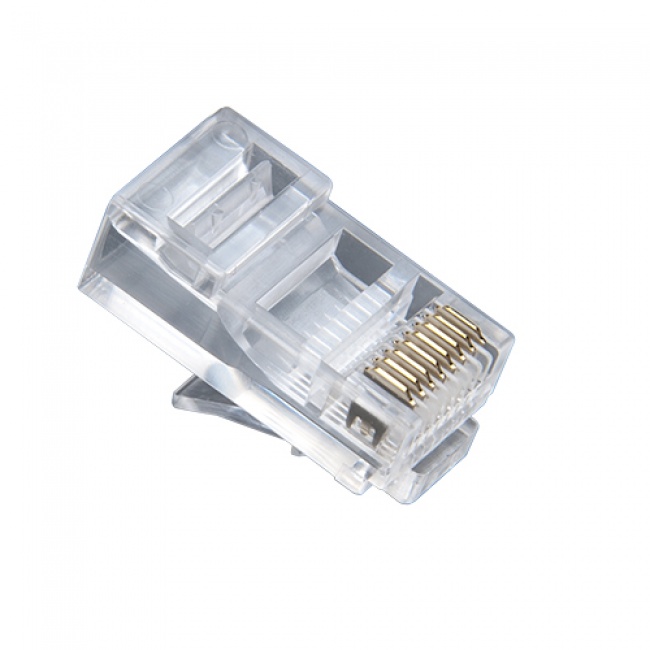

106153J
RJ45 CAT5e (8P8C), Round Cable, Solid (3 prong) Wire, 100 pc. Jar

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.

Cut Strip Terminate Test
