Standard CAT6 High Performance RJ45 Connectors

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

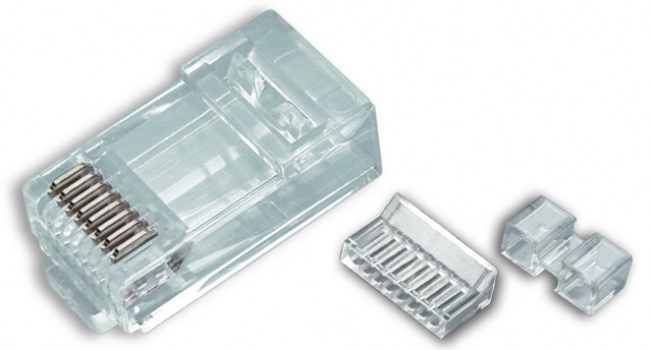

This 3 piece system makes terminating CAT6 quick & easy. The spacer bar acts as the stopping point for pair separation. Add the liner bar to maintain wiring configuration, and you are done. Simply flush cut the conductors and slide assembly into the connector and terminate.

  • Superior Performance
  • For round solid wire
  • 3 prong contact design
  • UL rated, RoHS
  • FCC compliant
  • Gold plated contacts, 50u
  • Round-Stranded available - See part numbers

Part Numbers

106170
RJ45 (8P8C) Cat6 High Performance, Round-Stranded. 500/Bag
106172C
RJ45 (8P8C) Cat6 High Performance, Round-Stranded. 25/Clamshell.
106173J
RJ45 (8P8C) Cat6 High Performance, Round-Stranded. 100/Jar.
106175
RJ45 (8P8C) Cat6 High Performance, Round-Solid 3-Prong. 500/Bag.
106177C
RJ45 (8P8C) Cat6 High Performance, Round-Solid 3-Prong. 25/Clamshell.
106178J
RJ45 (8P8C) Cat6 High Performance, Round-Solid 3-Prong. 100/Jar

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.
