ezEX mini Termination and Test Kit

P/N 90147

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page


The ezEX mini Termination & Test Kit makes the task of terminating Ethernet cables fast and easy. Everything you need contained and organized in a Platinum Tools heavy duty nylon Hanging Tool Pouch. The right tools, the right connector selection and the right tester for termination validation.

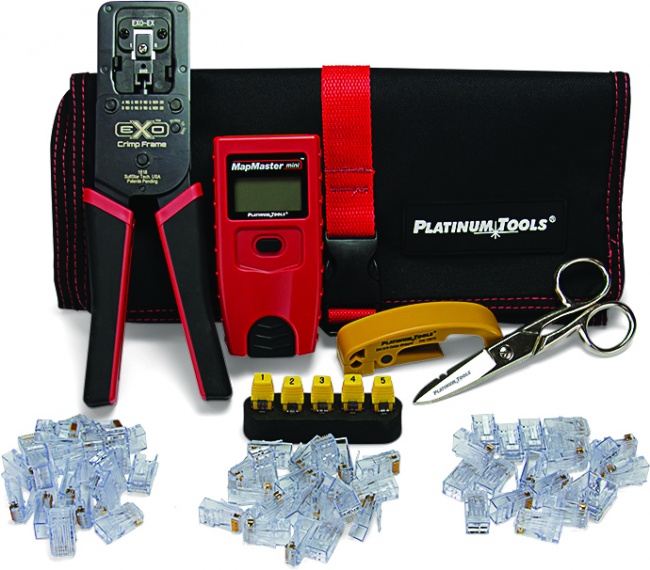

Kit Includes:

  • EXO Crimp Frame with EXO-EX Die
  • MapMaster mini RJ45 Cable Tester
  • Network Map/ID Remote Set, #1 - #5
  • Scissor-Run Electrician’s Scissors
  • Cat5e/6 Cable Jacket Stripper
  • ezEX38 Cat5e Connectors (20 pcs)
  • ezEX44 Cat6 Connectors (20 pcs)
  • ezEX48 Cat6A Connectors (20 pcs)
  • Platinum Tools Hanging Pouch

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.

Cut Strip Terminate Test
