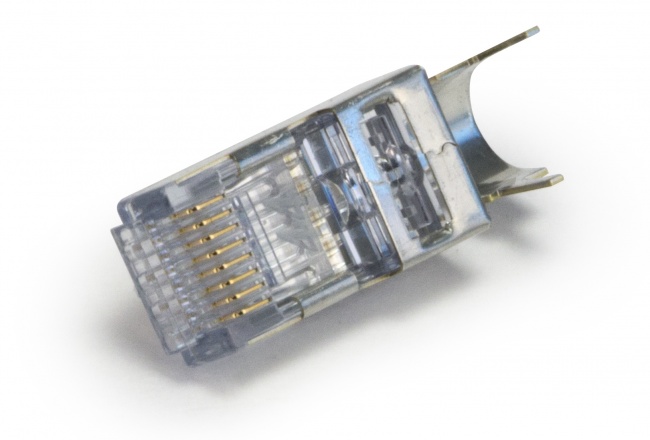

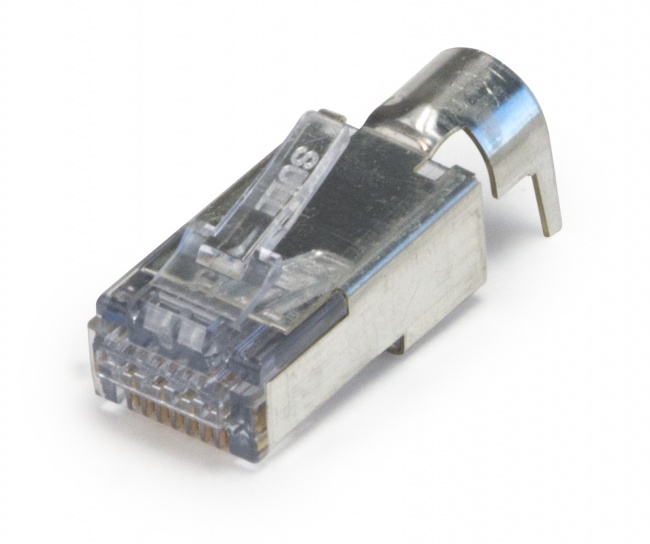

ezEX™44 Shielded, External Ground, CAT6 Connector

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

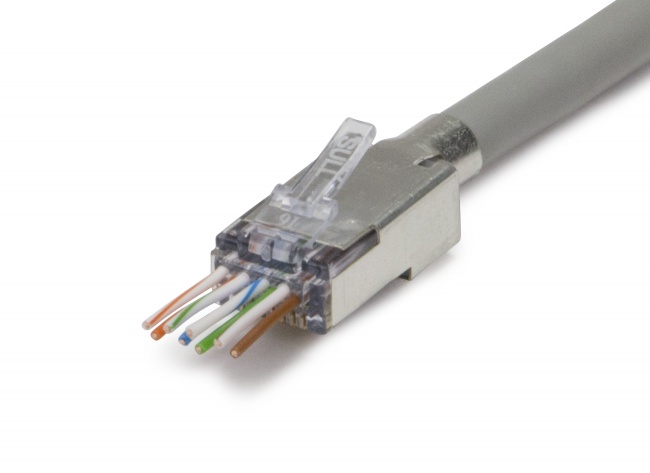

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame® and EXO-EX Die™ (100061C).

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Shielded 5e/6/6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.039” – 0.044” (1.0 –1.12mm)
  • Max Outer Diameter: 0.305” (7.75mm)
  • 50 micron gold plated contacts
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
  • Made in the USA

Part Numbers

100025C
ezEX™44 Shielded CAT6 Connector, External Ground, 25/Clamshell.
202051J
ezEX™44 Shielded CAT6 Connector, External Ground, 50/Jar.
105028
ezEX™44 Shielded CAT6 Connector, External Ground, 100/Bag.

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
