Cat6A Flex Connector

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

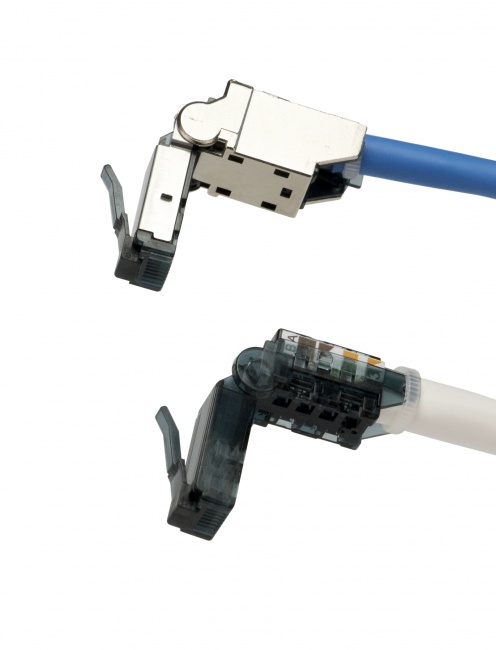

The Cat6A Flex Connector makes Cat6A and Cat7 terminations easier than ever. The unique patented design ensures top tier performance for Cat6A and Cat7 cabling. These connectors provide a low cost, easy termination solution with high performance and superior connectivity options.

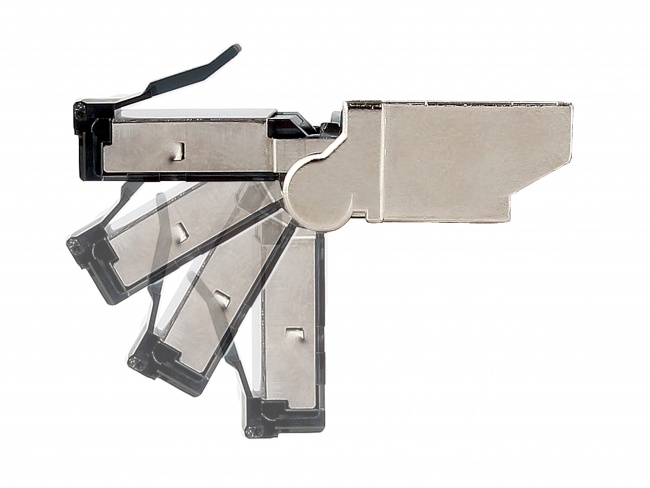

Flexible design:
- Can flex 90 degrees down
- Can flex 45 degrees up

  • Tool-less termination design

  • Minimal tools required for preparation

  • Accommodates Cat6A and Cat7 Cables up to 9.0mm and 26-22 AWG Conductors

  • Works with both solid and stranded conductors

  • Machine-precision-set contact height

  • Frequency rated up to 1GHz

  • 10-Gigabit certified

  • PoE+ rated


  • Flex Connector Termination Guide


    Part Numbers

    106220

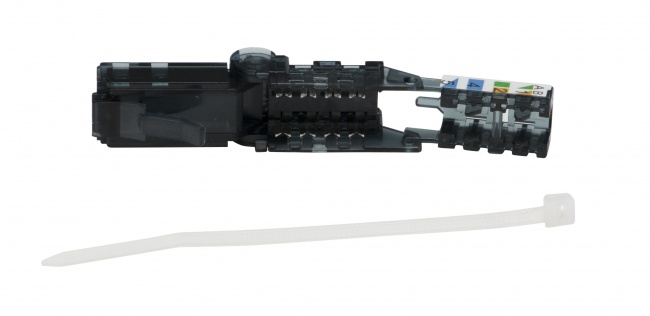

    Cat6A Flex Connector, Non-Shielded
    106230

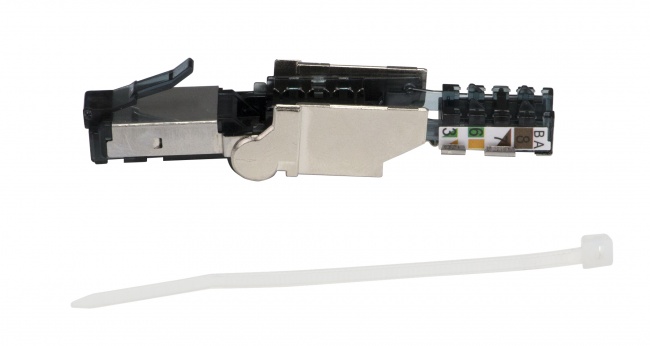

    Cat6A Flex Connector, Shielded

    Tips

    How you use your tools is just as important as what tool you choose for an application.

    T568A/T568B Wiring Chart
    Great cheat sheet.

    T568A/T568B Wiring Chart — Great cheat sheet.

    Wire 1 2 3 4 5 6 7 8
    T568A W/G G W/O BL W/BL O W/BR BR
    T568B W/O O W/G BL W/BL G W/BR BR
    F and RG6 Quad
    No more stab wounds.

    F and RG6 Quad — No more stab wounds.

    Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

    1. Use the EZ-GRIP Puck for holding & gripping the cable.

    2. Thread the connector onto the F Connector Assembly Removal Tool.
